Shinjuku gardens, tokyo

Shinjuku gardens, tokyo

Cheungvogl:

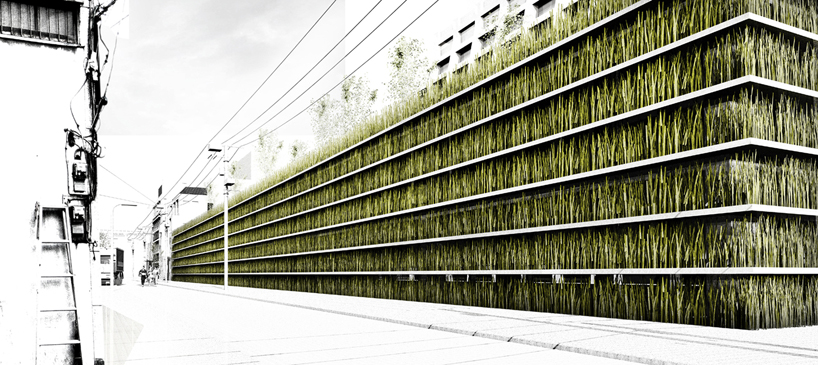

rendering of shinjuku gardens' exterior street view
all images courtesy of cheungvogl



in feudal eras, the creation of parks and gardens (not necessarily intended as public spaces) was ruled out
by the authoritarian master and urban planning of the imperial leadership. today's democratic systems,
respecting private property and development, are literally incapable of creating further green spaces within
a city's inner boundaries, due to land ownership and costs.

'shinjuku gardens' by hong kong-based cheungvogl (judy cheung and christoph vogl) is a social, environmental
and urban contribution, solely based on economical profit which deals with the cost of sheltered parking
and green spaces within tokyo.

rendering of the exterior


'shinjuku gardens' is a 2 storey car park - which replaces an existing open one - that doubles the
number of spots available for vehicles. considering the relative tightness of the space, ramps are replaced
by elevators - within a 2 storey circulation this is feasible, depending on lot-based car-lifting. even by doubling
the amount of parking spaces over two levels, the ground area is reduced by one fifth, thanks to a more
effective layout which provides more free green space, along with the infiltration of rain water.



'green cladding'


the structure's cladding is replaced by wide balustrades, providing the ground for grass to grow and camouflage
the car park within. this creates 'green walls' which enrich the neighbourhood's environment with vertical fields of grass,
instead of the common view of parked cars. the top of the parkade provides the actual new 'shinjuku garden',
a green space, publicly accessed - a green oasis above the facility.



the structure's cladding is replaced by wide balustrades, providing grounds in which grass is grown, creating the exterior of the car park



a view inside the shinjuku gardens car park with neon-light installations


inside there is street art exhibited, making use of the walls which act as blank canvases for young artists.
the museum-like approach, which is still close to the subject, shows further the potential of the everyday environment
to be an enriching experience which is evident in the typical car park lighting being replaced by neon-light installations.



interior view of the 'grass walls'



rendered over view of the car park and surrounding space

cross section



the parkade's roof top green space - the actual 'shinjuku garden'



plan of original layout
occupied land: 100 percent
parking spaces: 80




+0.00
occupied land: 78 percent / green public space +22 percent
parking spaces: 82




+3.00
occupied land: --
parking spaces: 81
